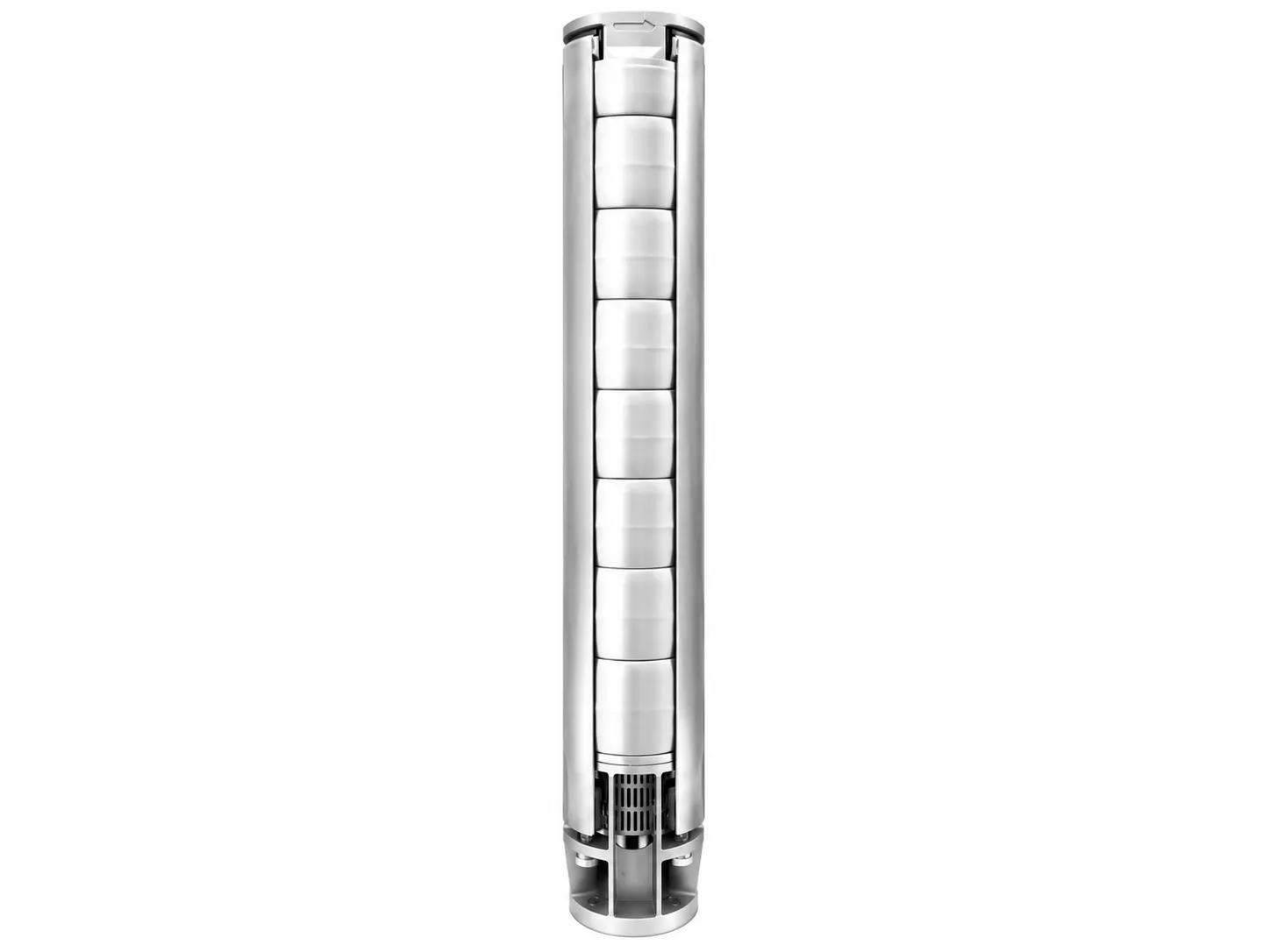

DP SERIES 8” SUBMERSIBLE PUMPS

Home  >  Products  >  Submersible Pump  >  DP SERIES 8” SUBMERSIBLE PUMPS
DP SERIES 8” SUBMERSIBLE PUMPS

DP SERIES 8” SUBMERSIBLE PUMPS

DP SERIES 8” SUBMERSIBLE PUMPS
DP SERIES 8” SUBMERSIBLE PUMPS
DP SERIES 8” SUBMERSIBLE PUMPS
DP SERIES 8” SUBMERSIBLE PUMPS.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Material
REF.N. PART MATERIAL STANDARD
1 Lower support Precision-cast stainless steel AISI 304
2 Coupling Stainless steel AISI 304
3 Shaft Stainless steel AISI 304
4 First neck ring NBR ……
5 Impeller Stainless steel AISI 304
6 Bush bearing NBR ……
7 Diffuser Stainless steel AISI 304
8 Split cone Stainless steel AISI 304
9 Split cone nut Stainless steel AISI 304
10 Neck ring NBR ……
11 Valve support NBR ……
12 Non-return valve Stainless steel AISI 304
13 Delivery port Precision-cast stainless steel AISI 304
14 Washer Stainless steel AISI 304
15 Nut for strap Stainless steel AISI 304
16 Cable guard Stainless steel AISI 304
17 Strap Stainless steel AISI 304
Specification
PUMP TYPE No.OF STAGES kW Hp Q=DELIVERY
l/min 0 300 600 900 1283 1700
m³/h 0 18 36 54 77 102
H=TOTAL HEAD METERS COLUMN OF WATER
0 300 600 900 1283 1700
77DP655/1 1 5,5 7,5 21 20 17 14 13 7
77DP675/2 2 7,5 10 41 37 33 28 27 13
77DP6110/3 3 11 15 61 57 50 43 40 20
77DP6150/4 4 15 20 80 76 67 58 53 27
77DP6185/5 5 18,5 25 100 94 84 73 67 33
77DP6220/6 6 22 30 121 113 101 88 80 40
77DP6250/7 7 25 34 142 133 120 104 94 47
77DP6300/8 8 30 40 159 150 135 117 107 53
77DP6300/9 9 30 40 177 167 152 131 117 58
77DP6370/10 10 37 50 200 188 168 145 133 68
77DP6450/11 11 45 60 218 207 186 159 147 74
77DP6450/12 12 45 60 249 240 217 190 160 99
