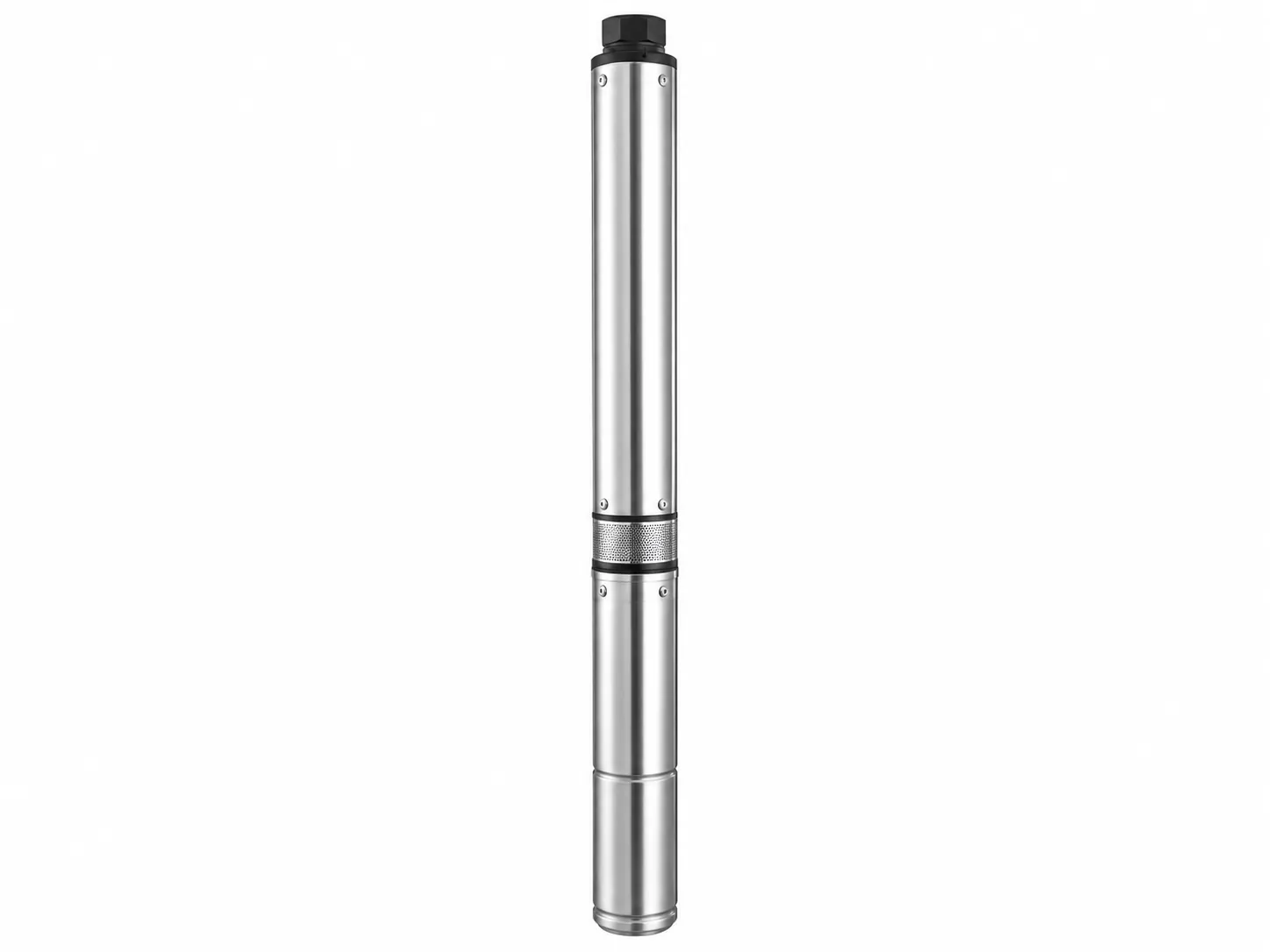

BFE SERIES 6”SUBMERSIBLE PUMPS

Home  >  Products  >  Submersible Pump  >  BFE SERIES 6”SUBMERSIBLE PUMPS
BFE SERIES 6”SUBMERSIBLE PUMPS

BFE SERIES 6”SUBMERSIBLE PUMPS

BFE SERIES 6”SUBMERSIBLE PUMPS
BFE SERIES 6”SUBMERSIBLE PUMPS
BFE SERIES 6”SUBMERSIBLE PUMPS
BFE SERIES 6”SUBMERSIBLE PUMPS.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Material
REF.N. PART MATERIAL STANDARD
1 Lower support Precision-cast stainless steel AISI 201
2 Thrust bearing Stainless steel AISI 304
3 Impeller Lexan® PC ……
4 Diffuser Lexan® PC ……
5 Outer sleeve Stainless steel AISI 201
6 Upper support Noryl® PPO ……
7 Shaft Sleeve Ceramic ……
8 Bush bearing TPU ……
9 Delivery port Precision-cast stainless steel AISI 201
10 Non-return valve Stainless steel AISI 304
11 Valve support with gasket Stainless steel & NBR AISI 304&……
12 Cable guard Stainless steel AISI 430
13 Shaft Stainless steel AISI 420
14 Filter Stainless steel AISI 201
15 Coupling Stainless steel AISI 420
Specification
PUMP TYPE No.OF STAGES kW Hp Q=DELIVERY
L/min｜0 300 500 600 700 800
m³/h｜0 18 30 36 42 45
H=TOTAL HEAD METERS COLUMN OF WATER
0 300 500 600 700 800
35BFE4(6)30 3 3 4 41 34 28 23 16 7
35BFE4(6)40 4 4 5,5 55 45 38 31 21 11
35BFE4(6)55 5 5,5 7,5 68 57 47 39 26 12
35BFE4(6)75 7 7,5 10 95 79 66 53 33 18
35BFE692 8 9,2 12,5 108 90 74 59 35 21
35BFE6110 10 11 15 135 113 93 75 40 22
35BFE6130 12 13 17,5 163 137 113 91 63 24
35BFE6150 14 15 20 188 157 128 102 67 26
35BFE6185 17 18,5 25 233 197 163 133 70 33
35BFE6220 20 22 30 277 235 193 159 73 35
35BFE6250 23 25 34 317 268 223 179 77 37
35BFE6300 27 30 40 356 296 235 185 112 40
