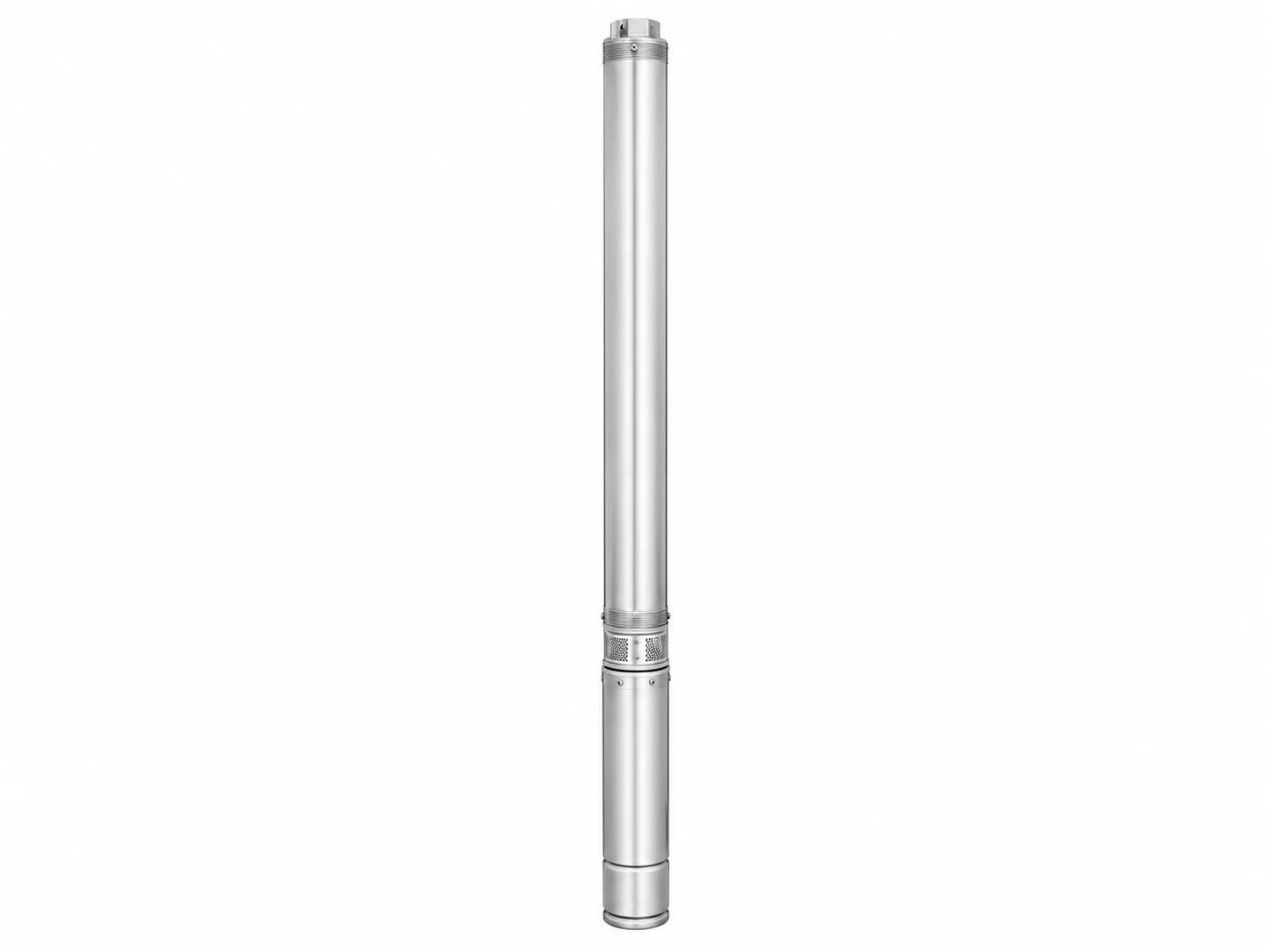

DL-BTE SERIES 3” SUBMERSIBLE ELECTRIC PUMPS

DL-BTE SERIES 3” SUBMERSIBLE ELECTRIC PUMPS

DL-BTE SERIES 3” SUBMERSIBLE ELECTRIC PUMPS
DL-BTE SERIES 3” SUBMERSIBLE ELECTRIC PUMPS
DL-BTE SERIES 3” SUBMERSIBLE ELECTRIC PUMPS
DL-BTE SERIES 3” SUBMERSIBLE ELECTRIC PUMPS.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Material
REF.N. PART MATERIAL STANDARD
1 Lower support Cast stainless steel AISI 201
2 Screw Stainless steel AISI 304
3 Filter Stainless steel AISI 430
4 Screw Stainless steel AISI 304
5 Stage housing PC ……
6 Impeller POM ……
7 Diffuser PC ……
8 Outer sleeve Stainless steel AISI 201
9 Wearing gasket NBR & Stainless steel …… & AISI 304
10 support PC ……
11 Shaft sleeve Stainless steel AISI 420
12 Bush bearing TPU ……
13 Valve support PC ……
14 Delivery port Precision-cast stainless steel AISI 201
15 Cable guard Stainless steel AISI 430
16 Shaft Stainless steel AISI 410
17 Coupling Stainless steel AISI 420
Specification‌
PUMP TYPE No.OF STAGES kW Hp Q=DELIVERY
l/min｜0 10 20 30 40 50 60
m³/h｜0 0,6 1,2 1,8 2,4 3 3,6
H=TOTAL HEAD METERS COLUMN OF WATER
0 10 20 30 40 50 60
DL2BTE02S 11 0,25 0,33 43 43 42 39 33 23 11
DL2BTE03S 15 0,37 0,5 59 59 57 53 46 35 19
DL2BTE03T
DL2BTE05S 21 0,55 0,75 82 82 79 72 61 46 26
DL2BTE05T
DL2BTE07S 27 0,75 1,0 104 104 101 93 79 59 32
DL2BTE07T
DL2BTE09S 33 0,92 1,2 127 127 123 113 95 71 40
DL2BTE09T
DL2BTE11S 39 1,1 1,5 152 152 149 137 117 87 48
DL2BTE11T
DL2BTE15S 46 1,5 2,0 180 180 175 161 136 101 57
DL2BTE15T
