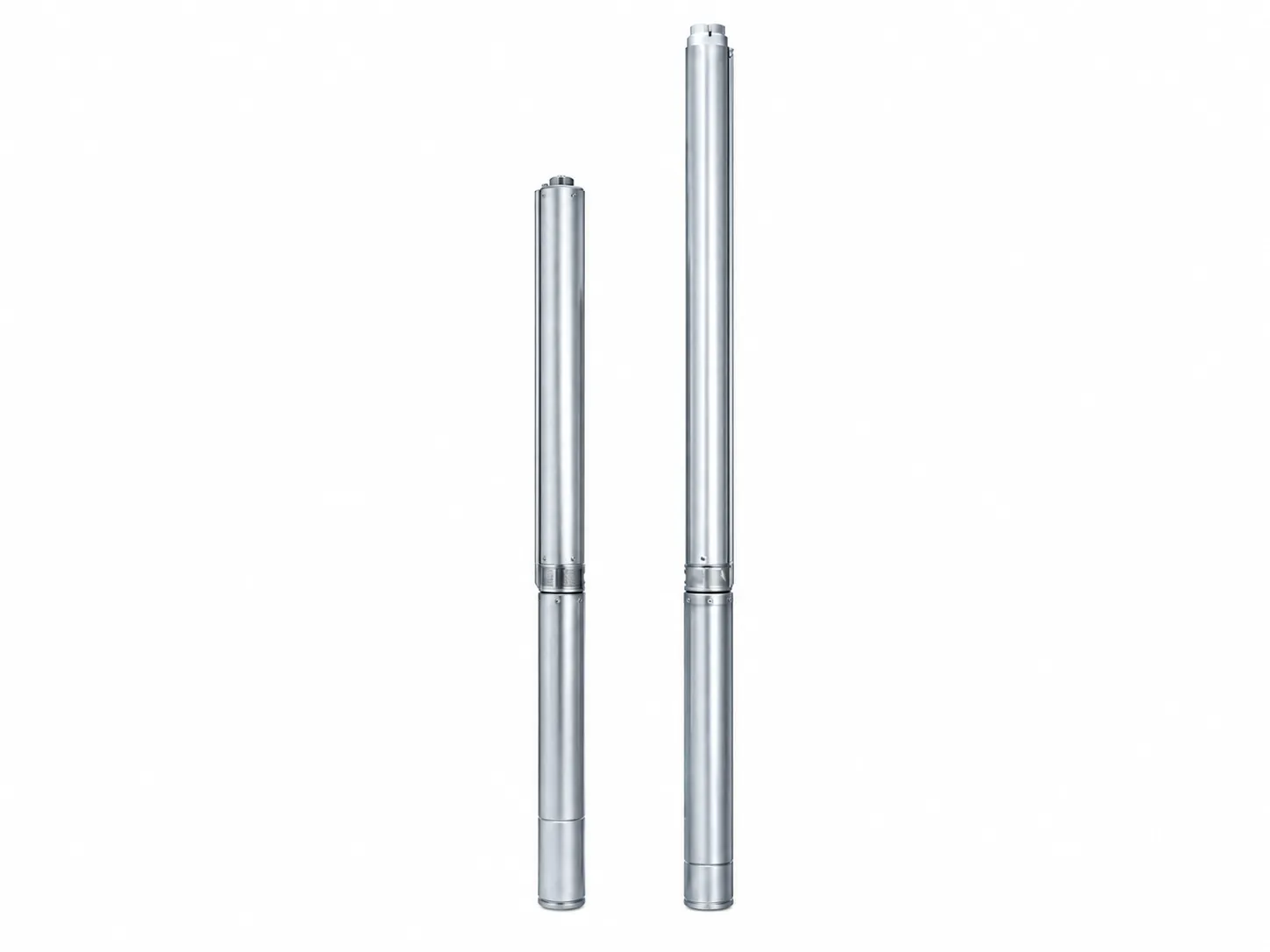

BGFEBHFE SERIES 4” SUBMERSIBLE ELECTRIC PUMPS

Home  >  Products  >  Submersible Motor  >  BGFEBHFE SERIES 4” SUBMERSIBLE ELECTRIC PUMPS
BGFEBHFE SERIES 4” SUBMERSIBLE ELECTRIC PUMPS

BGFEBHFE SERIES 4” SUBMERSIBLE ELECTRIC PUMPS

BGFEBHFE SERIES 4” SUBMERSIBLE ELECTRIC PUMPS
BGFEBHFE SERIES 4” SUBMERSIBLE ELECTRIC PUMPS
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Material
REF.N. PART MATERIAL STANDARD
1 Lower support Precision-cast stainless steel AISI 201
2 Upper support PC ……
3 Stage housing PC ……
4 Impeller POM ……
5 Diffuser PC ……
6 Outer sleeve Stainless steel AISI 201
7 Frist Impeller POM ……
8 Shaft sleeve Stainless steel AISI 420
9 Bush bearing TPU ……
10 Delivery port Precision-cast stainless steel AISI 201
11 Non-return valve PPO ……
12 Valve support PC ……
13 Cable guard Stainless steel AISI 430
14 Intermediate shaft sleeve Stainless steel AISI 304
15 Shaft Stainless steel AISI 410
16 Coupling Stainless steel AISI 304
17 Filter Stainless steel AISI 201
Specification
PUMP TYPE No.OF STAGES kW Hp Q=DELIVERY
l/min ｜ 0 5 10 15 20 25 30 35 40 45 50 55
m³/h ｜ 0 0,3 0,6 0,9 1,2 1,5 1,8 2,1 2,4 2,7 3,0 3,3
H=TOTAL HEAD METERS COLUMN OF WATER
0 5 10 15 20 25 30 35 40 45 50 55
2B□FE03S
2B□FE03T		 8 0,37 0,5 65 65 65 63 61 60 57 55 51 48 44 40
2B□FE05S
2B□FE05T		 11 0,55 0,75 87 87 86 85 82 79 76 74 68 64 59 53
2B□FE07S
2B□FE07T		 15 0,75 1 116 116 115 113 109 106 102 98 91 85 78 70
2B□FE11S
2B□FE11T		 20 1,1 1,5 160 159 158 155 150 146 140 135 125 117 108 97
2B□FE15S
2B□FE15T		 26 1,5 2 204 203 201 197 191 185 178 172 160 148 137 123
2BHFE22S
2BHFE22T		 38 2,2 3 291 290 288 282 273 265 254 246 228 212 196 176
2BHFE30T 48 3 4 378 377 374 367 354 344 330 320 296 276 255 228
2BHFE40T 56 4 5,5 451 449 446 437 423 411 394 382 353 329 304 272
